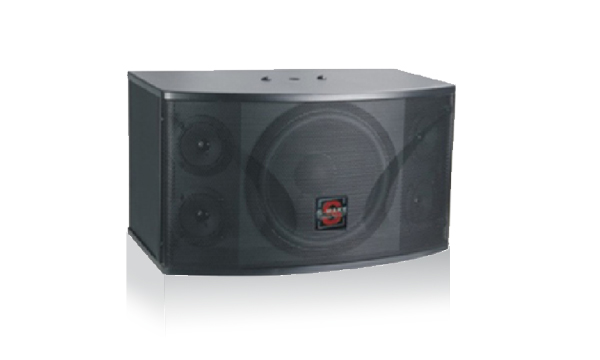

Ki-112 KTV音箱

特点：
12英寸大功率低音单元，采用2.5英寸铜线音圈线性悬挂系统和带孔轭铁设计的低音单元能有效消除失真和减少功率压缩  2个3英寸纸锥中音和2个3英寸纸锥高音搭配能更好的重放人声精心设计的分频器准确分频和优化三段频率响箱体采用坚固的中密度纤维板，表面采用乙烯基贴层处理专业设计的内置保护电路能有效保护高音单元，避免功率过载而中断工作

应用：
Ki112是一款专为KTV包厢设计的3分频全频音箱，它使用了1个12英寸低音单元、2个3英寸纸锥中音和2个3英寸纸锥高音。  采用非压缩长纤维纸浆纸盆和泡沫折环的  12英寸低音单元，具有坚韧、可靠性强的  特点，能承受磁路产生的巨大加速力。2个  3英寸纸锥中音搭配2个3英寸纸锥高音能改  善中高音表现并提供KTV扩声需要的更好  的音质。  整个音箱系统可以承受250W连续功率。箱  体采用坚固的中密度纤维板，表面采用乙  烯基贴层处理。镀镍处理的接线柱可增强  连接可靠性。2个高强度M10吊挂点，使得悬挂牢固度得以保证。  精心设计的整体式的栅格不仅能有效保护  零部件而且优雅的外观设计独具匠心。

Main features:
12 inches high power woofer , 2.5-inch copper voice coil linear suspension and perforated yoke designed woofer can effectively eliminate distortion and reduce power compression two 3- inch paper cone midrange and two three inches paper cone tweeter with better reproduction of the human voice carefully designed and optimized divider divider accurate three -band frequency response box made ;of sturdy MDF , the surface layer of vinyl stickers deal professionally designed built-in protection circuit can effectively protect the treble unit , to avoid overloading the power is interrupted work

Application:
Ki112 is a KTV rooms designed specifically for 3-way full-range speaker , it uses a 12- inch woofer , two 3- inch paper cone midrange and two 3- inch paper cone tweeter . Non- compressed 12 inches long fiber pulp cone woofer and foam surround , with a tough, strong reliability characteristics , can withstand the enormous acceleration forces generated by the magnetic circuit . Paper cone 2 3 in. 3 in. Alto with two paper cone tweeter treble to improve performance and provide better sound quality needed KTV . The entire speaker system can withstand 250W continuous power . Box made;of sturdy MDF , the surface layer of vinyl stickers processing . Nickel plated binding posts can enhance the connection reliability. Two high-strength M10 rigging points , making the suspension firmness can be guaranteed. Well-designed grid integral parts not only can effectively protect the distinctive design and elegant appearance .
