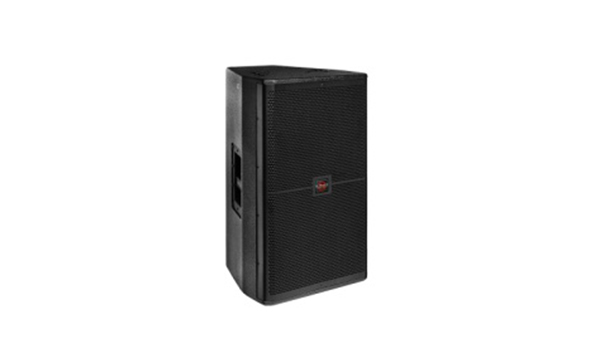

SRX715 专业音箱

<
>

  • 基本信息
  • 详细规格

1、SRX715是15"二分频全频音箱,内置经电脑检测的无源分频器。
2、使用了意大利CLIO电脑测试设备进行细致的音质测定。
3、高音采用3"钛金属振膜,90OH/50OV CD号角,使高频更加通透、明亮、更具穿透力,配合优化效能低音单元,具有远程投射力度和弹性。
4、特殊梯形箱体设计,坚固的箱体组合结构,方便安装和阵列,箱体喷涂黑色聚脂防水漆,易于防护,不仅防水、防潮、耐晒、且易于日常防护。
5、此音箱适用于体育馆、剧院、DISCO、夜总会等娱乐场所。要求更宽的音场效果时,可用S18、S218等超低频箱组合在一起使用,会有更好的音场效果。

1.F15 is a 15 "two-way full range speaker, built-in passive crossover detection by the computer.
2.Using the Italian CLIO computer careful quality test equipment measured.
3.Treble a 3 "titanium diaphragm, 90OH/50OV CD horn, so that high frequency is more transparent, bright, more penetrating, with optimal efficiency woofer with a long-range projection of strength and flexibility.
4.Special trapezoidal cabinet design, solid box structure, and easy installation and an array of cabinet spray paint black polyester waterproof, easy-to-protection, not only waterproof, moisture, light and easy-to-day protection.
5.The speaker for stadiums, theaters, DISCO, nightclubs and other entertainment. Requires a wider sound field effects, the available S18, S218 and other boxes together to use ultra-low frequency, there will be a better sound field effect.

技术指标 Technical Specifications
功率Rated Power Aes 600W
峰值功率Peak Power 1600W
阻抗Nominal Impedance 8Ω
频率响应Frequency Response(+/-3db) 55HZ—18KHZ
灵敏度Sensitivity(2.83V/1m) 97db
最大控制声压Maximum Spl Continuous 123db
峰值声压Maximum Spl Peak 129db
低音Lf Drive 1×15”(390mm)/3”voice Coil
高音Hf Drive 1.5”exit Compression Driver 3”voice Coil
箱体尺寸Dimensions (w×h×d) 445×720×402
重量Weight (Kg) 32.5Kg

Technical Specifications
Rated Power Aes 600W
Peak Power 1200W
Nominal Impedance 8Ω
Frequency Response(+/-3db) 55HZ—18KHZ
Sensitivity(2.83V/1m) 97db
Maximum Spl Continuous 123db
Drive Specification
Lf Drive 1×15”(390mm)/3”voice Coil
Hf Drive 1.5”exit Compression Driver 3”voice Coil
Dimensions (w×h×d) 445×720×402
Weight (Kg) 32.5Kg
