PO-2200A/3300A/ 6600A系列
<
>
- 基本信息
- 详细规格
PO-2200A/3300A/6600A
* 厚重大气的3U结构设计,抗震性极好,坚固耐用,故障率低。
* 全平衡超动态重驱技术，在驱动重负载时声音表现自如。
* 信号和削波发光LED指示灯可监视功放的工作状态
* 高信噪比（100dB以上），噪声极低。
* 多重叠加综合保护电路包括延时电源起动，DC（直流）、过流、过压过热、动态自动限幅保护，使功放工作正常稳定。
* 大功率双速风扇随音乐的变化自动调速，有效的节能和降低机内温度，提高系统可靠性。
* 经典的两种工作模式立体声/桥接满足不同系统的搭配。
PO-2200A/3300A/6600A features:
* The 3U srtucture design, with good function of resist-shake, sturdiness,durability and low malfunction rate.
* Dynamic full-balance of ultra-wide drive technology can make natural sound when driving heavy loads.
* High SNR(above 100db), low noise.

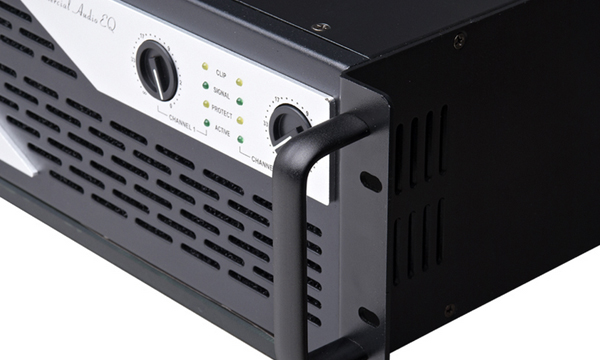

* The signal and shining LED clip indicator can monitor work status of the amplifier.
* Full-automatic protection circuit which including DC,overcurrent,overvoltage、overheating and dynamic automatic limitation protection, ensure the stabilization and efficience of the amplifier.
* The double-speed and high-power fan automatically reduce inner temperature and enhance the reliability of the system.
* The classical work mode of stereo /bridge meet the different system request.
|
MODEL型号 |
PO-2200A |
PO-3300A |
PO-6600A |
|
Output Power输出功率立体声8Ω+8Ω |
250W×2 |
350W×2 |
450W×2 |
|
Output Power输出功率立体声4Ω+4Ω |
350W×2 |
550W×2 |
700W×2 |
|
OutputPower(BRIDGE)输出功率桥接方式8Ω |
500W |
700W |
900W |
|
PowerConsumption耗电量 |
1500VA |
2200VA |
3000VA |
|
Dimensions外型尺寸（W×H×D） |
482×130×430 |
482×130×430 |
482×130×430 |
|
Weight重量 |
17kg |
20kg |
23kg |
|
Shipping Dimensions运输外型尺寸（W×H×D:1PCS） |
570×205×570 |
570×205×570 |
570×205×570 |
|
Shipping Weight运输重量(1PCS) |
19kg |
23kg |
26kg |
|
Frequency Respones频率范围（+/-0.5dB） |
20Hz-20KHz |
||
|
Input Sensitivity输入灵敏度 |
0.775V |
||
|
Input Impedance输入阻抗 |
40KΩ平衡/20KΩ不平衡 |
||
|
Noise (unweighted)信噪比 |
＞100dB |
||
|
Slew rate转换速度 |
＞30V/uS |
||
|
Power Supply供电电源 |
220V/AC/50Hz |
||
