PAM系列
· 全平衡超动态重驱技术，在驱动重负载时声音表现自如。
· 重架轻板式结构设计,抗震性极好,坚固耐用,故障率低。
· 信号和削波发光LED指示灯可监视功放的工作状态。
· 多重叠加综合保护电路包括DC（直流）、过流、过压、过热、动态自动限幅保护，使功放工作正常稳定。
· 经典的两种工作模式立体声/桥接满足不同系统的搭配。

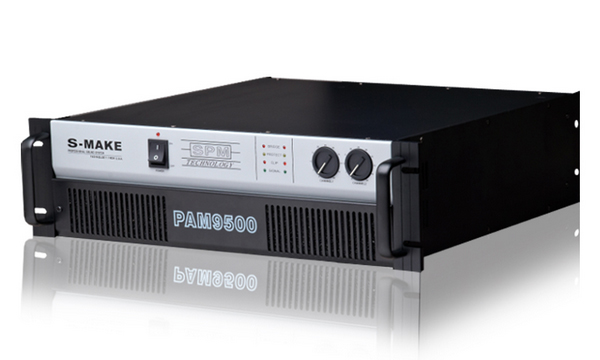

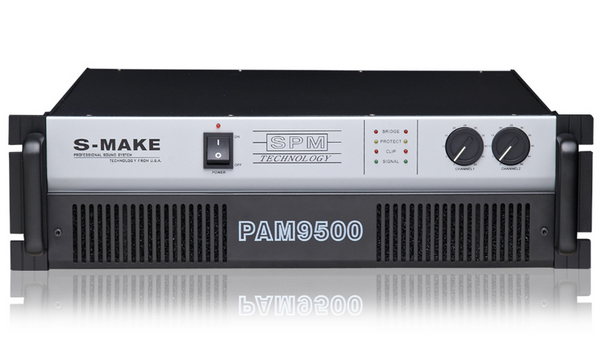

PAM-9500 feature：
* The technic which be of full balance and ultradynamic repeated drive can make the sound to drive heavy loads smoothly
* The structure design with heavy bracket and light metal plate, is of good resist-shake, firm, durable and low malfunction rate.
* The signal and shining LED indicator with Direct Wave Clipping can inspect work status of the amplifier.
* Multiple superimposed and integrative protection circuit including the power initiation delay, DC, overcurrent, overvoltage, overheating, dynamic automatic limitation protection to ensure the stabilization and effecience of the amplifier .
* The classical work mode of stereo/bridging could meet the needs of different system.
|
MODEL型号 |
PAM-7500 |
PAM-8500 |
PAM-9500 |
|
Output Power输出功率 立体声8Ω+8Ω |
700W × 2 |
900W × 2 |
1100W × 2 |
|
Output Power输出功率 立体声4Ω+4Ω |
1200W × 2 |
1600W × 2 |
1900W × 2 |
|
Output Power(BRIDGE)输出功率 桥接方式8Ω |
1400W |
1800W |
2200W |
|
Power Consumption耗电量 |
4700VA |
4700VA |
4700VA |
|
Weight重量 |
25kg |
27kg |
29kg |
|
Shipping Weight运输重量(1PCS) |
28kg |
30kg |
32kg |
|
Frequency Respones频率范围（+/-0.5dB） |
20Hz-20KHz |
20Hz-20KHz |
20Hz-20KHz |
|
Input Sensitivity输入灵敏度 |
0.775V |
0.775V |
0.775V |
|
Input Impedance输入阻抗 |
40KΩ平衡/20KΩ不平衡 |
40KΩ平衡/20KΩ不平衡 |
40KΩ平衡/20KΩ不平衡 |
|
Noise (unweighted)信噪比 |
＞100dB |
＞100dB |
＞100dB |
|
Slew rate转换速度 |
＞30V/uS |
＞30V/uS |
＞30V/uS |
|
Power Supply供电电源 |
220V/AC/50Hz |
220V/AC/50Hz |
220V/AC/50Hz |
|
Dimensions外型尺寸（W×H×D） |
490×130×450mm |
490×130×450mm |
490×130×450mm |
|
Shipping Dimensions运输外型尺寸（W×H×D:1PCS） |
570×205×570mm |
570×205×570mm |
570×205×570mm |
